Elevate control with microDRIVE

OPERATING VOLTAGE

CONTINUOUS CURRENT

BASE WEIGHT

PROTECTION

DRIVE Elevated.

Continuous 120A Performance.

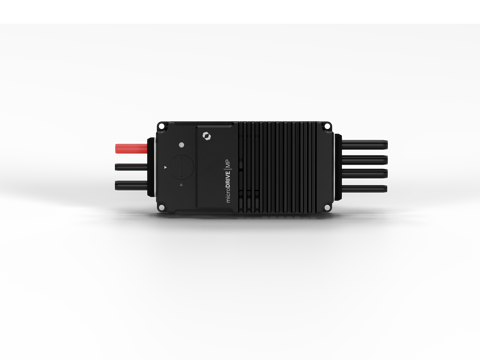

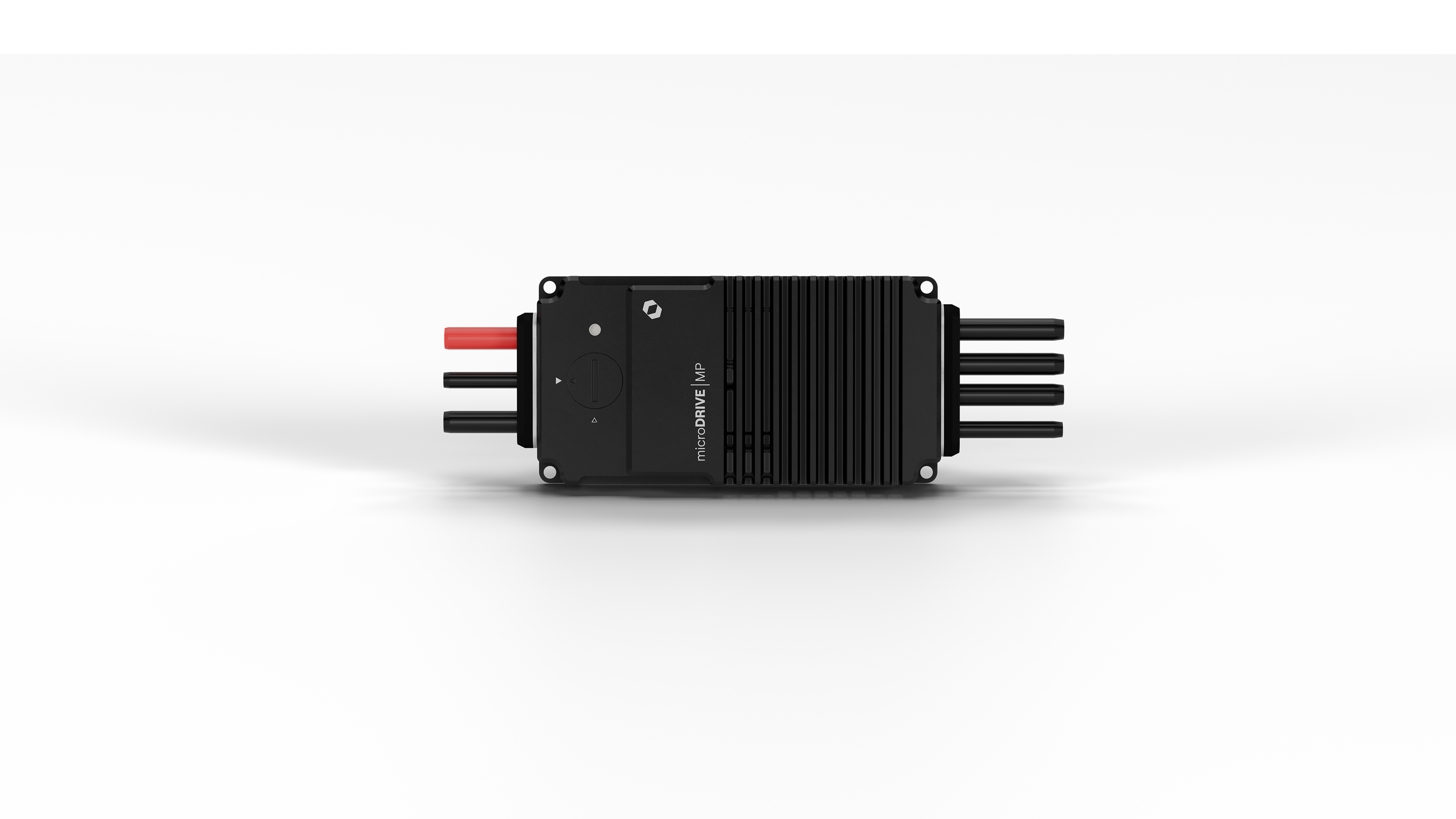

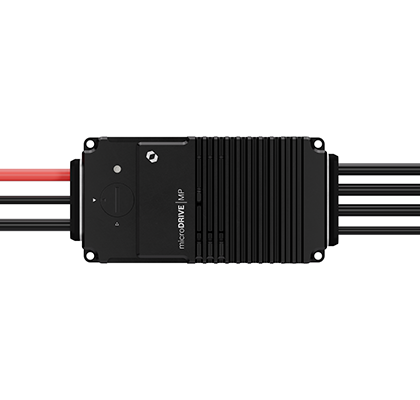

microDRIVE MP is engineered for both performance and flexibility in the highest demand missions, optimised for medium VTOL / helicopter applications. microDRIVE MP offers the choice between our flight-proven, high-efficiency FOCAL algorithm and a rapid-response trapezoidal drive profile.

Integrated temperature sensing and multiple hall-effect sensor inputs unlock advanced features such as active propeller parking, and intelligent motor temperature protection. microDRIVE MP ensures safe, responsive control across your entire flight, delivering smooth, reliable power where and when it counts.

Mission Ready Connectivity.

DroneCAN and ARINC 825 integration.

Reliable, real-time telemetry and control are mission-critical in complex aircraft systems. microDRIVE MP is designed with modern avionics communication in mind. Support for DroneCAN and ARINC 825 communications, enable seamless integration into any modern flight platform, providing full throttle control, configuration, in-flight telemetry and streamlined firmware updates, ensuring every ESC performs exactly as expected. With 60+ configurable parameters and comprehensive visibility across key telemetry points including current, voltage and RPM, microDRIVE MP provides continuous insight into system performance. Engineers and operators gain a live view of performance throughout every phase of flight.

Configuration changes and firmware updates can be executed directly from the flight computer or ground station, simplifying development, testing and fleet deployment. For compatibility with a wide range of control architectures, microDRIVE MP also supports Bidirectional DShot and PWM.

Endure the Elements.

Uncompromised performance across coastal, humid and dust-intensive environments.

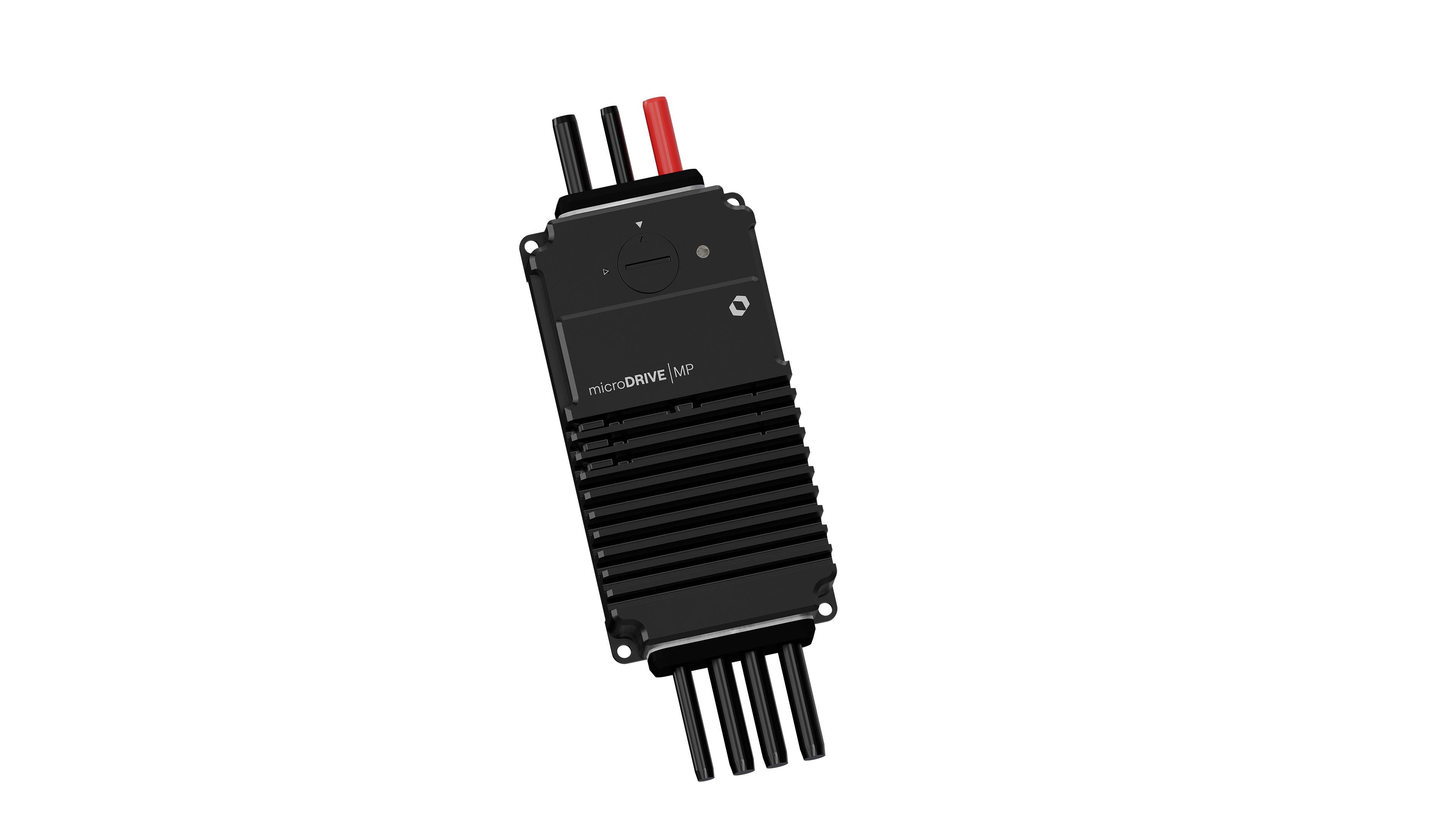

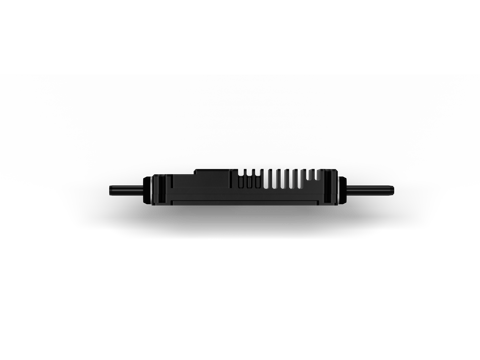

When your mission environment is unpredictable, durability matters most. microDRIVE MP comes in a rugged IP67-rated enclosure that protects the electronics against dust ingress and temporary submersion in water. The robust enclosure allows for deployment in any mission environment; take on coastal operations, high-humidity environments or sandy deserts with uncompromising confidence.

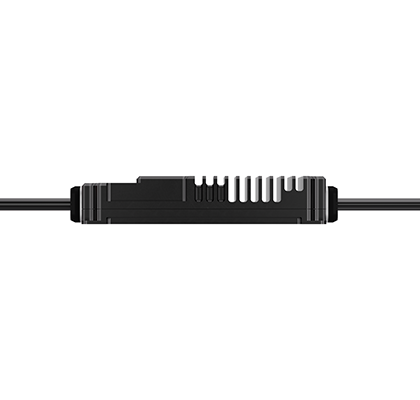

Beyond environmental protection, the integrated enclosure also serves as a key part of the thermal management strategy, effectively drawing heat away from the controller to support sustained 120A performance. microDRIVE MP combines high power density with real-world resilience — so you can focus on mission performance rather than system limitations.

Engineered for Confidence.

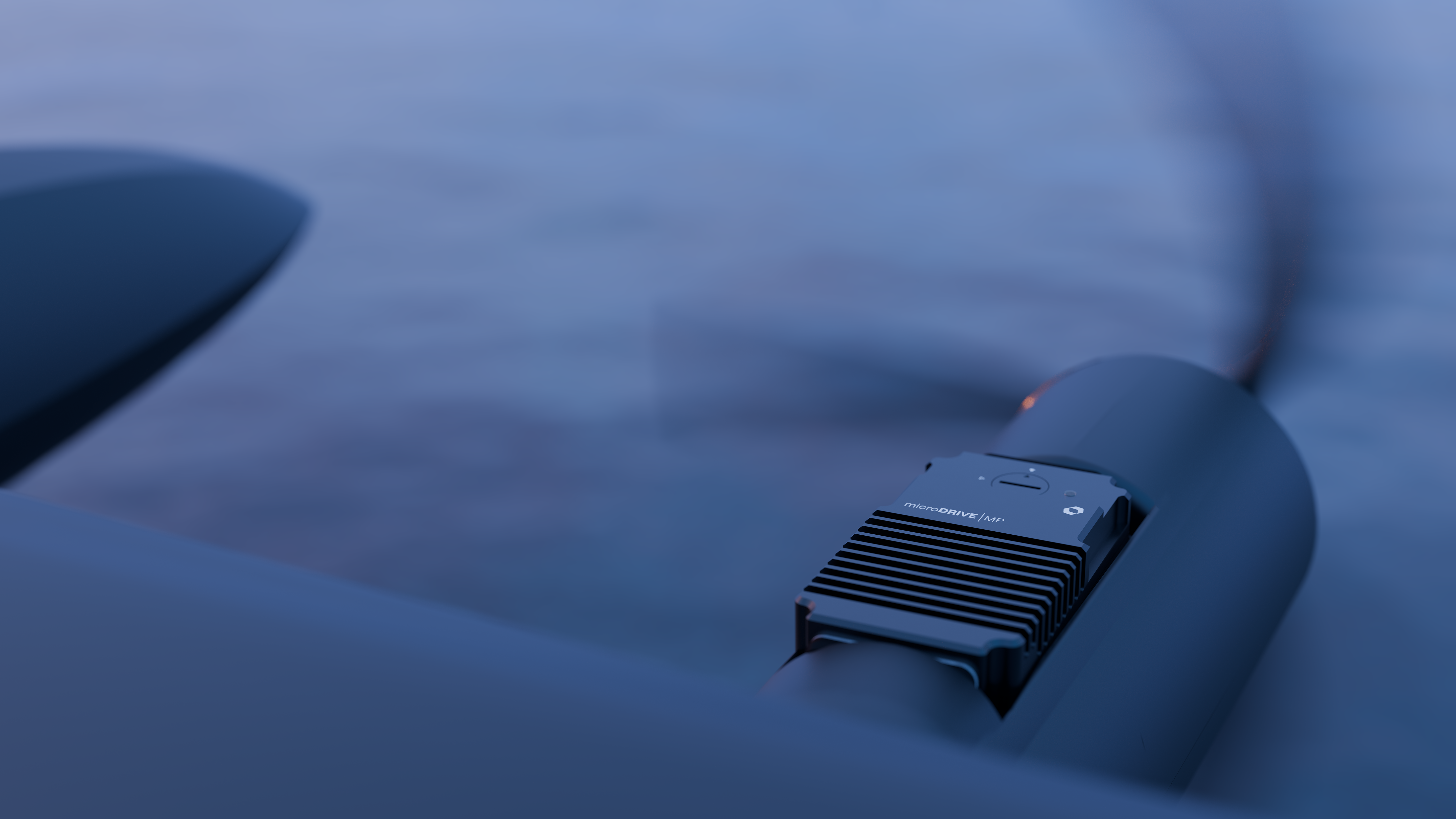

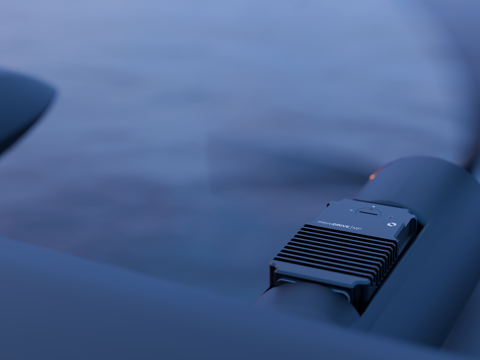

Built for demanding VTOL and helicopter platforms, microDRIVE MP combines intelligent protection, in-depth data visibility and robust hardware design to ensure confident operation in every phase of flight.

High-speed circular data logging, with storage for up to 72 hours.
Real-time, configurable hardware protection mechanisms.
Internal capacitor bank allows for up to 3m (9ft) of input leads.
Fully integrated power and signal cables.
Accurate current measurement over full operating range.
Advanced onboard diagnostics and self-testing.
Error-correcting memory.

Built by Hargrave.

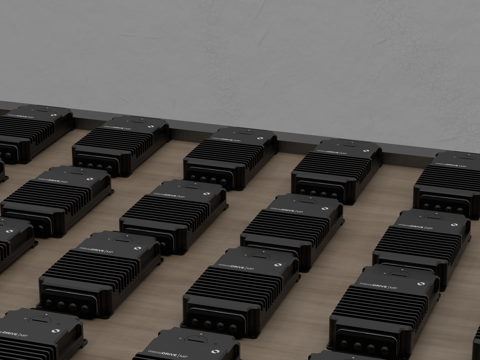

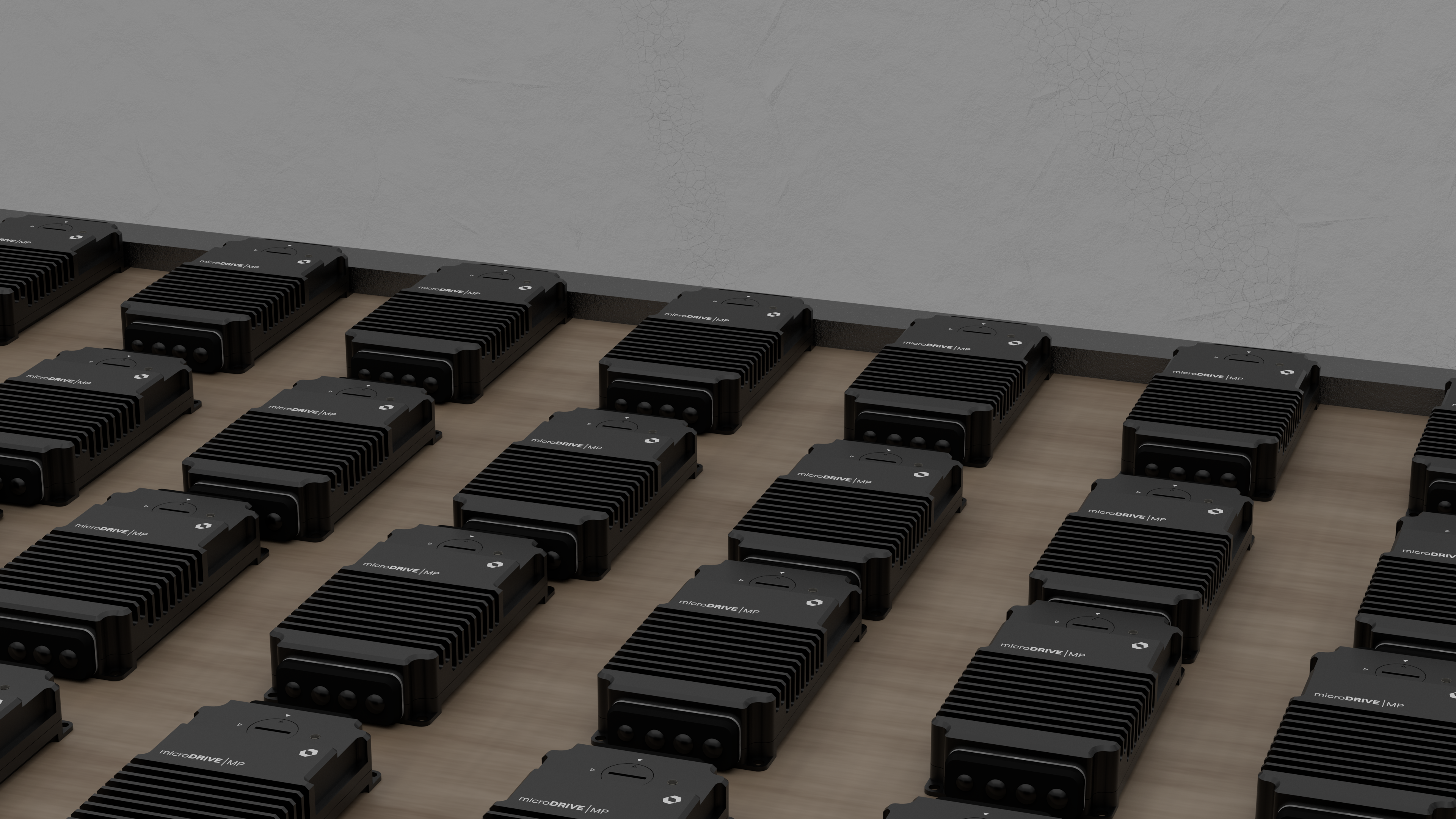

microDRIVE MP harnesses our deep vertical integration across hardware, firmware and manufacturing to deliver the highest-performing, most robust motor controller we've ever built. It incorporates everything we've learnt over the past decade of building ESCs for some of the most advanced uncrewed vehicles in the world.
